Eagle Eye Camera System

Technical Specifications


Remote Heads

  • MoVI Pro

  • Shotover G1

  • Newton S2

Payload Weight Range

  • 15-35lbs (Ideal Weight is around 15-20lbs)

Sag Ratios

  • Standard sag @ 5% for payloads under 15lbs

  • Sag ratio increases 1% for every lbs over 15lbs.


Power

Power to the Head

  • 15-48V

Power to the Winches

  • 100-240V Single Phase

Winch Power Consumption

  • 3.5kW/per winch @ 30Amps Max

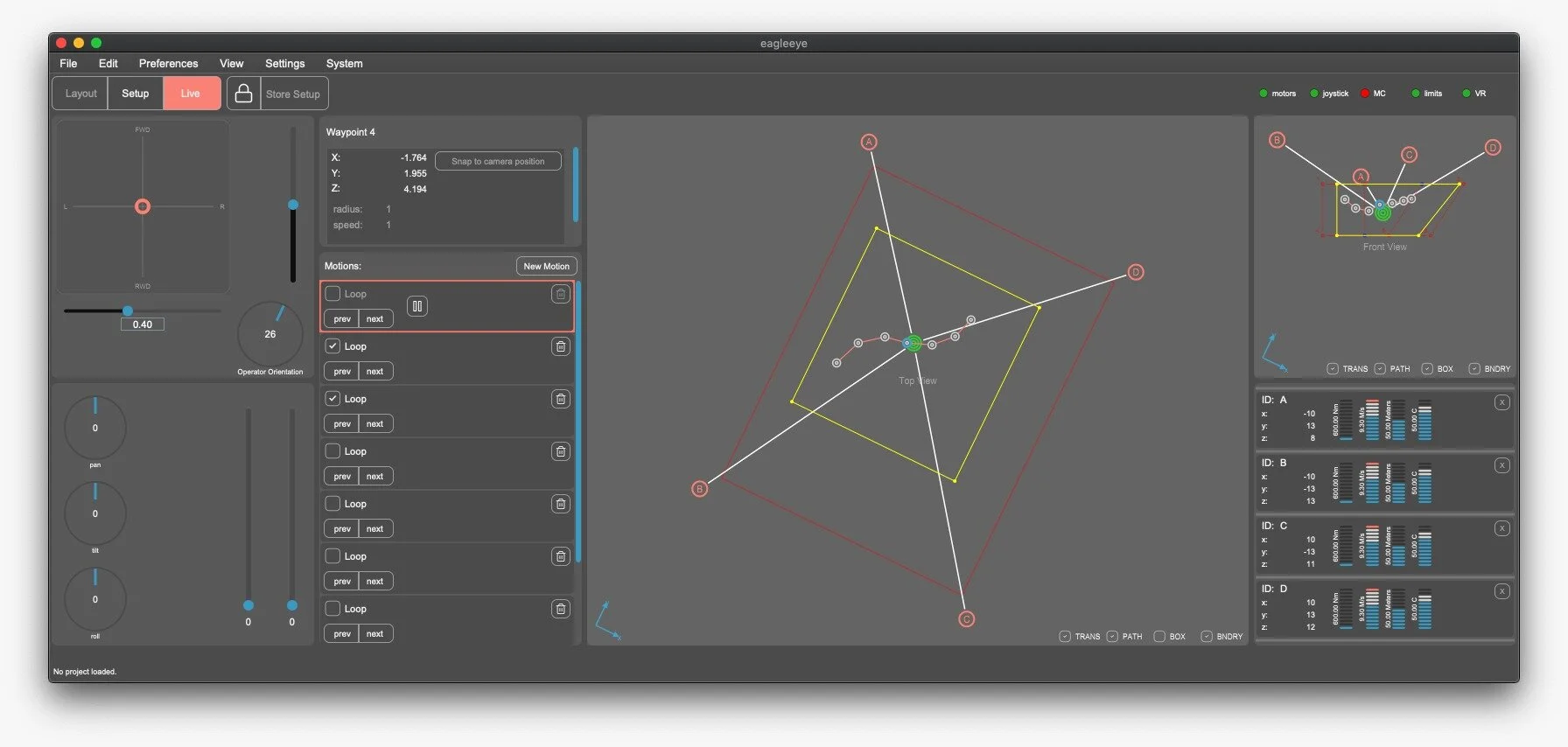

EagleEye Software -1.jpg

Maximum Flying Area

  • 100m diagonal


Maximum Speed

  • 6 m/sec (20ft/sec)*

*When within standard weight range

Power & Fiber

  • Power in Cables (Winches 3 & 4)

    • Camera & Transmission always On

    • No Battery Swaps Needed

  • Fiber in Cables (Winches 1 & 2)

    • Fiber Redundancy


Additional Features

  • Programmable Moves = Yes

  • Power Distribution = Yes

  • 8K Signal Transmission = Yes

  • Augmented Reality Support = Yes*

    • *Shotover G1
